ELETM公司首創的銀基鍵合絲，基于5N以上的高純銀，通過專有的合金化鑄造和加工技術，解決了銀鋁中間化合物擴散過快和性能退化的問題，并大大增強了抗腐蝕能力，是金絲的最佳替代品。
n特點/Characteristics
Type | YA1 | YA2 | YA3 | YA4 |
Main content | Ag≥99.0% AuPd≤1.0% | Ag≥95.0% AuPd≤5.0% | Ag≥88.0% AuPd≤12.0% | Ag≥85.0% AuPd≤15.0% |
Characteristics | 電阻率低，熱傳導率高 | 抗疲勞性好 | 抗腐蝕性好 | 可靠性高 |
n機械性能/Mechanical properties
Diameter | B/L(gf) | E/L(%) | ||||
μm | mil | YA1 | YA2 | YA3 | YA4 | YA |
15±1 | 0.6 | ＞1.5 | ＞2 | ＞3 | ＞4 | 2 - 10 |
16±1 | 0.65 | ＞2 | ＞3 | ＞4 | ＞5 | 2 - 10 |
18±1 | 0.7 | ＞4 | ＞5 | ＞6 | ＞7 | 5 - 15 |
20±1 | 0.8 | ＞5 | ＞6 | ＞7 | ＞8 | 5 - 15 |
23±1 | 0.9 | ＞7 | ＞8 | ＞10 | ＞11 | 5- 15 |
25±1 | 1.0 | ＞9 | ＞10 | ＞12 | ＞13 | 5- 15 |
30±1 | 1.2 | ＞13 | ＞14 | ＞15 | ＞16 | 8- 18 |
32±1 | 1.25 | ＞15 | ＞16 | ＞17 | ＞18 | 8 - 18 |
38±1 | 1.5 | ＞20 | ＞21 | ＞22 | ＞23 | 10 - 20 |
50±2 | 2.0 | ＞34 | ＞36 | ＞38 | ＞40 | 10 - 20 |
75±3 | 3.0 | ＞68 | ＞70 | ＞75 | ＞78 | 15 - 25 |
n應用范圍/Applications Of Ag Bonding Wires
YA1 | YA2 | YA3 | YA4 |
常規 | LED QFN TSOP Flash Memo | LEDPBGAQFPTQFPTSSOPBGAQFNFlash MemoDFN IC CARD MQFP
| TQFP |

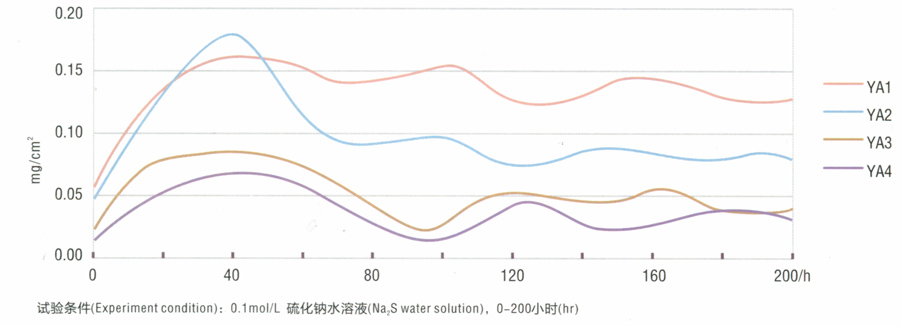

n抗腐蝕性能/Corrosion Resistance
n熔斷電流、硬度/Fusing Current & Hardnes
Type | YA1 | YA2 | YA3 | YA4 | ||
μm | mil | |||||
Fusing Current | 18 | 0.7 | 0.38 | 0.35 | 0.32 | 0.30 |
20 | 0.8 | 0.49 | 0.45 | 0.42 | 0.39 | |
23 | 0.9 | 0.62 | 0.57 | 0.53 | 0.48 | |
25 | 1.0 | 0.76 | 0.70 | 0.64 | 0.61 | |
30 | 1.2 | 1.07 | 0.99 | 0.91 | 0.89 | |
38 | 1.5 | 1.66 | 1.54 | 1.42 | 1.37 | |
50 | 2.0 | 2.91 | 2.74 | 2.52 | 2.43 | |
Hardness | Wire | 56-61 | 59-64 | 61-66 | 63-68 | |
FAB | 50-55 | 53-58 | 55-59 | 56-60 | ||

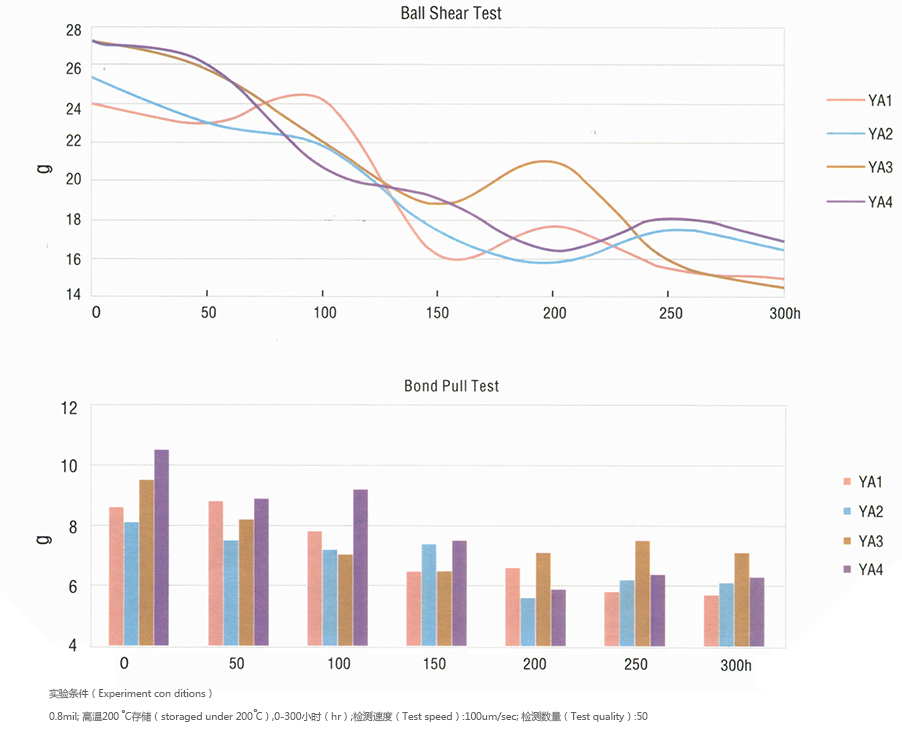

n可靠性/Reliability
